An outdoor running track is a seven-year investment, and the most visible part of it — the colored wearing course — is decided by a single purchase decision: which EPDM rubber granules to buy.
Contractors and distributors know the failure pattern. A track installed with budget granules looks vivid on opening day. By the second summer, the red lanes have turned a dull orange, the blue field event areas are mottled, and fine black dust comes up on runners' shoes. Sometimes the granules themselves loosen and shed. The project is still structurally sound, but the client sees a surface that looks ten years old. The problem almost always traces back to the granule supply: reclaimed rubber passed off as EPDM, surface-coated color that wears off, or over-filled granules that are brittle and dusty.
If you are specifying granules for a real track — whether you are a track contractor ordering for a new build, a distributor vetting a supplier, or a project buyer comparing quotes — this guide explains what actually drives UV resistance, color retention, and durability, and how to evaluate a granule batch before you commit.
True virgin EPDM granules are pigmented through the whole particle and are naturally UV- and weather-resistant; the cheapest "EPDM" on the market is often reclaimed rubber or dyed SBR that fades within one season.
Color retention is the single best quality signal. Ask for weathering/UV test data and a real sample, not just a brochure swatch.
Particle size grading is chosen by layer: fine 1–3 mm granules for a smooth wearing course, larger granules for the cushion/base.
Watch filler loading: excessive mineral filler makes granules dusty, brittle, and a binder-hungry.
The economical, industry-standard build is a thick black SBR/EPDM base with a thin colored EPDM wearing course — you do not need colored EPDM everywhere.
EPDM (ethylene propylene diene monomer) is a synthetic rubber engineered for outdoor exposure. It resists ozone, UV, oxygen, and temperature swing far better than general-purpose rubbers, which is exactly why it is the default material for colored sports-surface wearing courses.
Quality EPDM granules are produced by curing and then grinding or pelletizing virgin EPDM compound, with color pigment mixed into the rubber before curing — so the color runs through the entire granule, not painted on the surface. When you see a premium EPDM granule cut open, the inside matches the outside. That through-color is the core reason a good track stays bright for years: even as the surface wears, fresh colored rubber is exposed.
The trap in the market is that "EPDM granules" is used loosely. Three products are sold under the same label:
Virgin EPDM granules — consistent polymer formulation, through-colored, predictable performance. The premium choice.
Reclaimed / regrind EPDM — recycled EPDM from used profiles or hoses, reground. Cheaper, but formulation, curing state, and pigment vary batch to batch; color retention is uneven.
Dyed SBR or black crumb rubber — styrene-butadiene rubber crumb that has been surface-colored. The cheapest option. It fades quickly, the coating wears off with abrasion, and SBR itself is far less UV-stable than EPDM.
Knowing which one you are actually being quoted is the whole game.
EPDM's natural weatherability is its main advantage, but not all EPDM is equal. Colored EPDM depends on stable inorganic pigments and a properly formulated polymer. Good suppliers can provide accelerated weathering / UV aging test reports showing ΔE color change after hundreds of hours. Ask for the number and the test standard, not a verbal "it's UV-resistant." A simple field test: ask for a sample and leave it on a sun-exposed windowsill for two weeks next to a competitor's sample — the difference shows up fast.
Running track wearing courses typically use fine EPDM granules around 1–3 mm for a smooth, fast, uniform surface. Larger 1–4 mm or coarser granules belong in the cushion/base layer, where texture and drainage matter more than finish. Mismatched sizes — too coarse on the top course — give a rough, slippery-in-wet surface; too fine on the base wastes binder and kills drainage.
EPDM compound is extended with filler for cost control, but there is a line. Granules that are unusually heavy, chalky, or dusty are over-loaded with mineral filler (such as calcium carbonate or barite). They look fine in the bag but are brittle under foot traffic, crumble at the edges, and demand far more PU binder to coat every dusty surface — quietly eating your margin. Low dust and a natural rubber feel in the hand are good signs.
EPDM granules must be dry when mixed with PU binder. Moisture in the granule reacts with the isocyanate binder and causes foaming, blistering, and weak spots. Reputable suppliers bag or palletize in weatherproof packaging; loose or rain-wetted stock should be rejected.
Granules and binder must be specified together. A dusty, over-filled granule uses noticeably more binder than a dense, well-made one, which changes your cost per square meter. Typical PU binder dosage falls in the low single-digit percentage by weight of granules, adjusted for wearing course versus base layer — always confirm with your binder supplier, and prefer a source that sells a qualified granule-plus-binder system.
表格
| Evaluation Factor | Virgin EPDM Granules | Reclaimed / Regrind EPDM | Dyed SBR Crumb |
|---|---|---|---|
| UV / weather resistance | High | Moderate, inconsistent | Low |
| Color retention | Through-color, multi-year | Fades unevenly | Fades fast; coating wears off |
| Consistency batch to batch | High | Variable | Variable |
| Dustiness / filler | Low | Can be dusty | Often high |
| Binder demand | Predictable | Higher, variable | Higher |
| Best use | Colored wearing course | Budget base / non-visible layers | Black cushion/base only |
| Relative cost | Highest | Medium | Lowest |
Nearly every durable outdoor track uses a two-layer system, and that is where smart buyers save money without sacrificing appearance:
Base / cushion layer — a thicker layer of black SBR or coarser EPDM, bonded with PU binder, provides shock absorption, force reduction, and vertical deformation performance. This layer is never visible, so there is no reason to pay for colored premium EPDM here.
Wearing course — a thinner layer (commonly 3–5 mm, depending on system design) of fine, through-colored virgin EPDM in the track's lane colors, bonded with the appropriate PU binder. This is where premium EPDM and aliphatic binder earn their cost.
This build puts your best granule money where the client sees it. On a new asphalt or concrete base, the standard sequence is: clean and prime the substrate → place and compact the PU-bonded base layer → place and finish the colored EPDM wearing course → allow full cure before opening. Climate matters: install in dry, mild conditions, keep rain off through cure, and reject any delivery of granules that arrived wet.

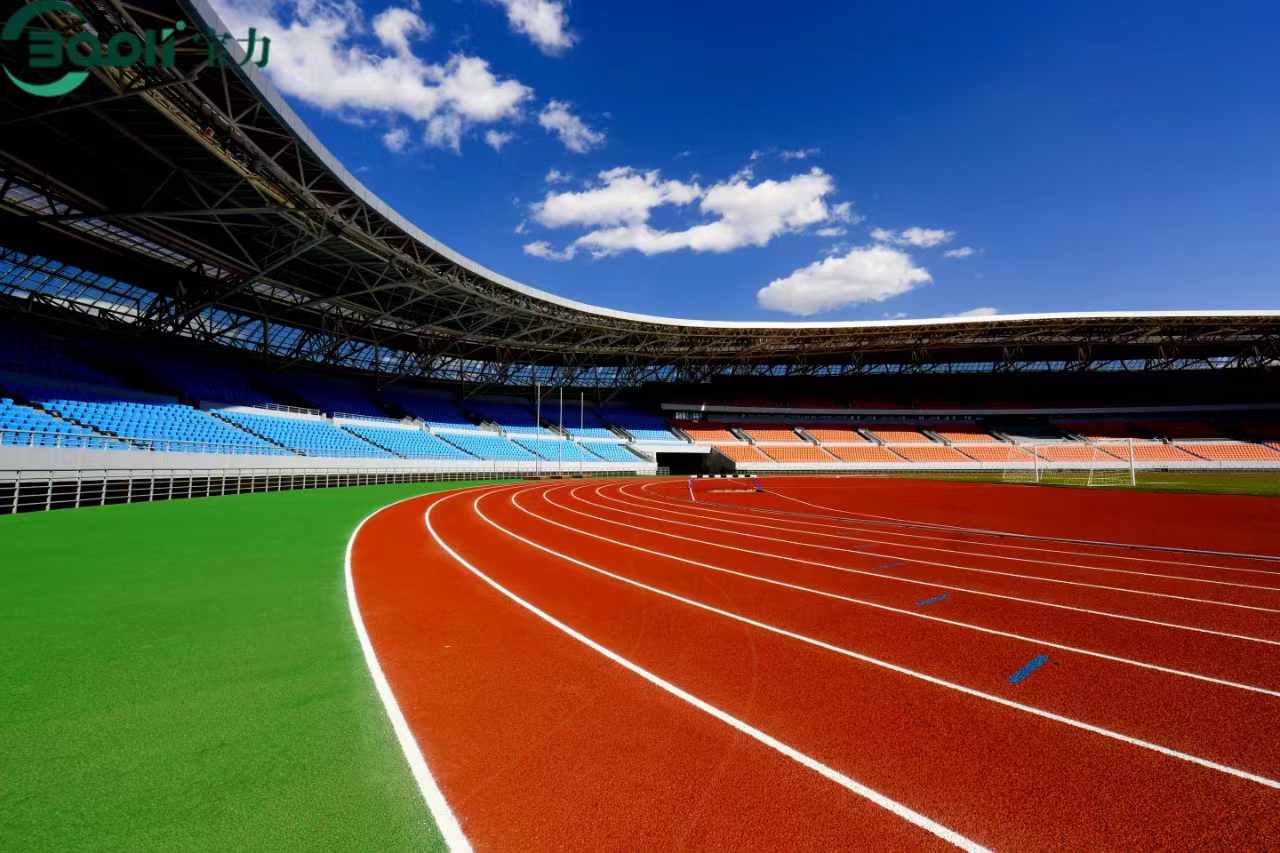

Premier competition tracks (certified venues) — specify virgin, through-colored EPDM on the wearing course, and request full system test data aligned with World Athletics facility standards and EN 14877. Do not cut granule grade here.

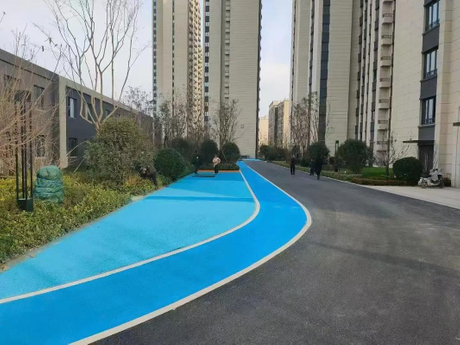

School and community tracks — virgin EPDM top course over an SBR base gives the best balance of appearance, performance, and budget.
Hot, high-UV, or coastal climates — insist on accelerated UV test data and through-colored virgin EPDM; this is where reclaimed or dyed granules fail fastest.
Budget-constrained projects — never fake color on the top course. Instead, use fewer color zones (one lane color, fewer field event areas) and keep premium EPDM on those visible surfaces; use SBR on everything hidden.

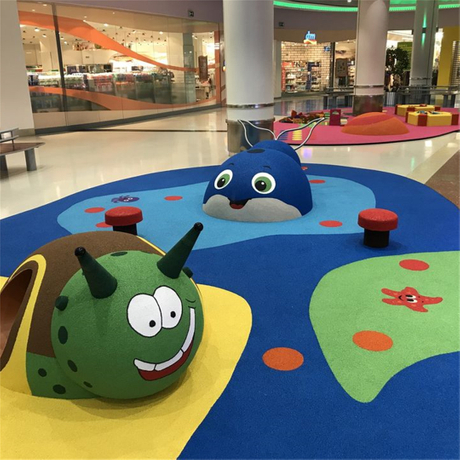

Indoor or covered facilities — UV is less of a driver, and a lower-grade EPDM may be acceptable; still avoid dyed SBR where color is expected.
Before placing an order, ask your supplier for:

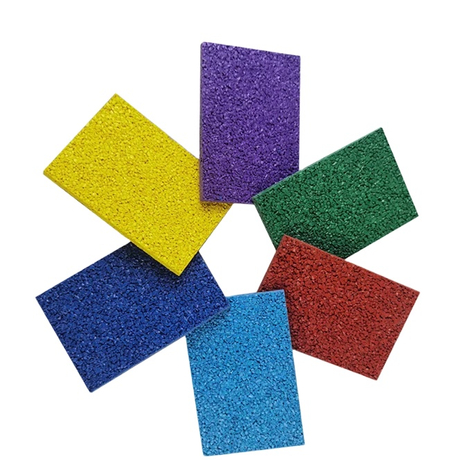

A sample bag of the exact production batch — not a polished showroom swatch.
Accelerated UV/weathering test reports with a stated ΔE and test standard.
Confirmation that the product is through-colored virgin EPDM, not regrind or dyed SBR.
Particle size grading for the layer you are buying (fine top-course vs coarse base).
Recommended PU binder dosage and compatibility, ideally as a qualified system.
Packaging that protects granules from moisture, and a certificate of analysis per delivery.
Choosing EPDM rubber granules for an outdoor running track comes down to one principle: put through-colored virgin EPDM where it is seen, and let SBR or coarser material do the hidden work. The granules that look cheapest at quote stage are the ones that fade, dust, and shed by the second season — and redoing a discolored track costs far more than the premium you saved on a pallet of granules.
At Baoli Technology, we supply virgin, through-colored EPDM rubber granules in a full range of track and playground colors, graded for wearing course and base layers, formulated as a matched system with our polyurethane binders. We provide UV/weathering test data, batch certificates, and technical support for track contractors, distributors, and importers. Contact our sales team with your track dimensions, climate, and required colors for a recommended two-layer system and dosage.
