On a pour-in-place EPDM project, the granules get all the attention — the color mixes, the sizes, the safety ratings. But walk back onto a failed site six months later and the problem is almost never the rubber. The granules are still intact. What has failed is the glue between them: the PU binder for EPDM rubber granules.
You see it in the field in predictable ways. A playground surface that looks rich red in May is a chalky, yellowed pink by October. A running track develops loose granules along the lane lines where runners cut in. A wet-pour safety surface delaminates from the asphalt after a wet winter, lifting in sheets. A court stays soft and tacky for weeks after installation and never fully hardens. In nearly every case, the root cause is a binder that was wrong for the climate, the application, or the installation conditions — not a bad batch of EPDM.
If you are a sports flooring contractor, playground installer, distributor, importer, or project buyer specifying materials for a real site, choosing the right polyurethane binder is the decision that protects the whole project. This guide walks through the chemistry, the performance factors that matter, the trade-offs between binder types, and how to match the binder to your climate and application.
The EPDM granules are the aggregate; the PU binder is the structural matrix. Binder choice determines adhesion, color stability, curing, and service life — not just "glue."
The single most consequential choice is aromatic vs. aliphatic binder: aromatic is cheaper but yellows and chalks under UV; aliphatic is non-yellowing and worth the premium for exposed, color-sensitive surfaces.
Two-component (2K) reactive PU binders dominate professional pour-in-place work; one-component moisture-curing binders are sensitive to humidity and are usually reserved for repairs or specific indoor uses.
Mix ratio matters in both directions: too little binder causes granule loss; too much makes the surface hard, brittle, slow to drain, and more expensive.
Binder selection cannot be separated from installation conditions — temperature, humidity, substrate dryness, and rain window decide whether a good product cures into a good surface.

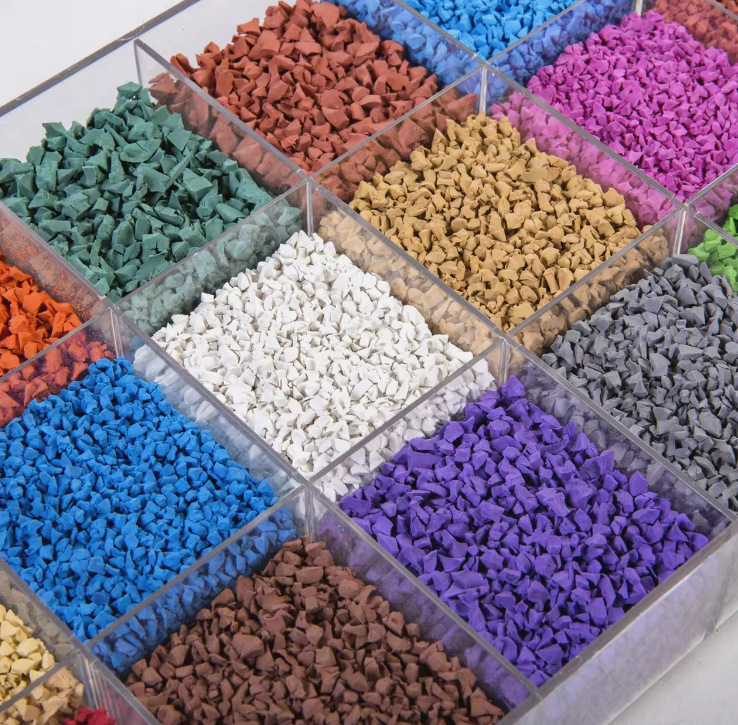

EPDM (ethylene propylene diene monomer) rubber granules are chemically stable, UV-resistant, color-retaining aggregates. On their own they are inert. What turns a pile of colored granules into a continuous, elastic, impact-attenuating surface is the binder that coats every granule and cures into a flexible film around them.
In pour-in-place and wet-pour construction, the binder performs two jobs at once:
It bonds the granules to each other, creating a monolithic elastic layer with enough tensile strength and elongation to flex under foot traffic without cracking, yet enough cohesion to hold granules in place under abrasion.
It bonds the whole layer to the substrate — usually prepared asphalt or concrete — so the surface does not delaminate under freeze-thaw cycles, standing water, or heavy use.
Most professional systems use a two-component polyurethane (2K PU) binder. One component is a polyol resin; the other is an isocyanate curing agent (typically MDI-based). When mixed at the supplier's prescribed ratio — commonly in the range of roughly 4:1 to 6:1 by weight of resin to curing agent, but always follow the datasheet — the two react to form a cross-linked elastomer. The reaction is not "drying"; it is chemical curing. That distinction explains why cold weather, trapped moisture, and bad mix ratios cause so many field failures.
This is the choice that most often gets made on price and regretted in the second season.
Aromatic binders use aromatic isocyanate chemistry. They offer good mechanical strength, reliable adhesion, and the lowest cost per kilogram. Their weakness is ultraviolet light. Aromatic urethane bonds photo-degrade under prolonged UV exposure: the surface yellows, chalks, and gradually loses gloss and elasticity. On a colored EPDM wearing course this does not destroy the structure, but it visibly shifts the apparent color — bright red turns orange-pink, blue turns muddy, light colors darken.
Aromatic binder is acceptable for base/cushion layers that are never exposed, for shaded or indoor installations, or where budget is the overriding constraint and mild color shift is tolerated.
Aliphatic binders use aliphatic isocyanate chemistry. They are substantially more UV-stable and resist yellowing and chalking, preserving the true EPDM granule color for years of outdoor exposure. The trade-off is cost: aliphatic binder typically carries a meaningful price premium over aromatic.
For exposed wearing courses on running tracks, playgrounds, and outdoor courts, the extra cost is usually justified. Re-coloring, patching, or re-installing a surface that has yellowed prematurely costs far more than the binder premium saved.
Nearly all structural pour-in-place work uses two-component (2K) binder because the cure is controlled and complete once mixed, independent of ambient moisture.
One-component (1K) moisture-curing PU binders cure by reacting with atmospheric moisture. They are convenient for small repairs and touch-ups, but their cure speed swings wildly with humidity: in a dry heated space they may cure too slowly; in very damp conditions they can cure unevenly. They are not the typical choice for a full outdoor running track or playground pour.
When buying, confirm which chemistry you are being quoted, and ask for the curing mechanism on the datasheet — "rubber flooring adhesive" and "PU glue for EPDM" are generic terms suppliers use for both.
Do not evaluate an EPDM binder on price per drum alone. Score it on the factors that actually govern field performance.
EPDM is a low-surface-energy rubber, so bonding it is not automatic. A quality polyurethane binder mechanically encapsulates each granule and develops chemical adhesion at the contact points. Weak bonding shows up as loose granules on the surface after a few months of traffic. Always ask the supplier for proof of bonding to their own recommended EPDM granules — binders and granules from mismatched sources are a common cause of "shedding" failures.
This is the practical consequence of the aromatic/aliphatic choice. Outdoor, light-colored, or brand-sensitive projects (school branding, playground themes, premium running tracks) should specify aliphatic binder for the wearing course. Keep aromatic for hidden cushion layers.
A durable outdoor binder must withstand freeze-thaw cycling, thermal expansion, and prolonged sun without brittling or softening. Poor-quality binders go brittle in cold winters and soft/sticky in summer heat. Ask about the service temperature range on the datasheet.
2K PU binder has a finite pot life once the two components are mixed — typically measured in tens of minutes at warm temperatures. Hot weather shortens it sharply, which is why small batches and disciplined crews matter. Cold weather extends cure time and can leave the surface soft or incompletely reacted.
The cured binder matrix needs enough tensile strength to hold the aggregate together and enough elongation to flex with the substrate and foot impacts without cracking. For playground safety surfacing the system as a whole (granule size, layer thickness, binder dosage) must meet impact-attenuation requirements such as EN 1177; for running tracks, look for systems aligned with World Athletics facility standards and EN 14877. Treat any supplier quoting exact MPa or elongation figures without the corresponding test standard with caution.
This is the most under-appreciated failure mode. Isocyanate reacts with water to release CO₂. Trapped moisture — in the substrate, in damp granules, or from rain during cure — causes blistering, foaming, pinholes, and weak bonding. Both the substrate and the EPDM granules must be dry, and the surface must be protected from rain until fully cured.
PU binder is a real cost driver, but it is usually a small fraction of total installed cost once labor and base preparation are included. Saving money by switching to an aromatic binder on a visible top course, or by under-dosing binder, is one of the most expensive mistakes a contractor can make over a multi-year maintenance horizon.
| Evaluation Factor | Aromatic 2K PU Binder | Aliphatic 2K PU Binder | 1K Moisture-Cure PU |
|---|---|---|---|
| UV / yellowing resistance | Low — yellows and chalks outdoors | High — non-yellowing, color-stable | Moderate; still limited UV stability |
| Mechanical strength | Good | Good | Lower; repair/touch-up grade |
| Adhesion to EPDM & substrate | Good (with correct primer) | Good (with correct primer) | Moderate |
| Cure control | Controlled by mix ratio; temp-dependent | Same | Depends on ambient humidity |
| Best layer | Base / cushion / hidden courses | Exposed wearing course | Small repairs, indoor touch-ups |
| Relative cost | Lowest | Highest | Moderate |
| Typical application | Sub-base of tracks, shaded areas | Outdoor tracks, playgrounds, courts | Patch work |
A binder performs in the field, not on a datasheet. The same product can succeed or fail depending on how it is matched to the site.
Climate and season. Install when air and surface temperatures are roughly in the 15–30°C range, with relative humidity moderate and no rain forecast through the cure window. In summer, mix smaller batches to beat short pot life; in winter, expect slower cure and warn the client against early foot traffic. Never pour into rain or onto a wet base.
Substrate. The layer bonds to properly prepared, sound asphalt or concrete. The surface must be clean, dry, and free of curing compounds, oil, and loose material. A compatible PU primer on the substrate is what converts "resting on" into "bonded to." Skipping the primer to save time is a classic delamination cause.
Mixing. Use a forced-action mixer, not a drill paddle in a bucket. Measure resin and curing agent by weight, not by eye, and then meter binder to granules at the supplier's recommended dosage — typically a modest percentage of granule weight, adjusted for wearing course versus cushion layer. Under-dosing creates a weak, sandy surface; over-dosing wastes binder and creates a hard, slow-draining layer.
Equipment and finishing. Gauge rakes and trowels produce even thickness and correct compaction. Insufficient compaction leaves voids that trap water; over-compaction closes the surface and ruins drainage.
Material compatibility. This is where buying from one source that recommends both its EPDM granules and its binder pays off. A binder that bonds perfectly to one granule formulation may under-bond another. If you source granules and binder separately, ask both suppliers to confirm compatibility in writing before the pour.
There is no single "best" binder. Match it to the job:
Outdoor playgrounds / wet-pour safety surfacing exposed to sun and featuring brand colors — use aliphatic 2K binder for the wearing course, aromatic for the cushion/base layer. Guarantee impact thickness meets EN 1177 for the critical fall height.
Running tracks (full pour-in-place EPDM systems) — aliphatic binder on the colored top layer for long-term color stability and World Athletics-aligned performance; aromatic on the shock pad/base where it is hidden.
Multi-use courts (basketball, tennis, hard-court color surfaces) — aliphatic, UV-stable binder, because courts are intensely trafficked and visually prominent; poor color retention is immediately obvious to the client.
Indoor gyms, fitness rooms, covered play areas — aromatic binder is usually adequate and cost-effective, since UV exposure is minimal.
Hot, high-UV, or coastal climates — lean aliphatic on any exposed surface; also confirm weather resistance against salt and humidity.
Cold or damp installation seasons — confirm the binder's low-temperature cure behavior with the supplier and be conservative on scheduling; moisture-cure 1K products are the wrong tool for a large outdoor cold-weather pour.
Is this a two-component reactive PU binder, or a one-component moisture-cure product?
Is it aromatic or aliphatic, and what UV/color-stability data do you provide?
What is the exact mix ratio by weight, and the recommended binder-to-granule dosage for my layer thickness?
What primer do you specify for asphalt and for concrete substrates?
What is the pot life at 20°C and at 30°C, and the minimum cure time before foot traffic?
What are the storage conditions, and how moisture-sensitive is the isocyanate component once opened?
Do your granules and this binder carry compatibility data together, and what standards (EN 1177, EN 14877, World Athletics alignment) does the system meet?
Choosing the right PU binder for EPDM rubber granules is not a commodity purchasing decision. It is the decision that determines whether your pour-in-place surface stays elastic, color-true, and bonded for years — or sheds granules, yellows, and delaminates within a season. Prioritize aliphatic chemistry on exposed wearing courses, respect the mix ratios and the substrate, protect the cure window from moisture and rain, and insist on a binder–granule system that is qualified together.
At Baoli Technology, we manufacture EPDM rubber granules and polyurethane binder systems as a matched range — including aliphatic and aromatic 2K binders formulated for running tracks, wet-pour playground safety surfacing, and outdoor sports courts. Our technical team can help you specify binder dosage, primer, and installation conditions for your climate and project, and supply distributors, importers, and contractors with consistent, batch-qualified materials. Contact our technical sales team with your project thickness, climate, and application for a recommended system and dosage.
